Video Showcase
An expandable container house shipped to the UK

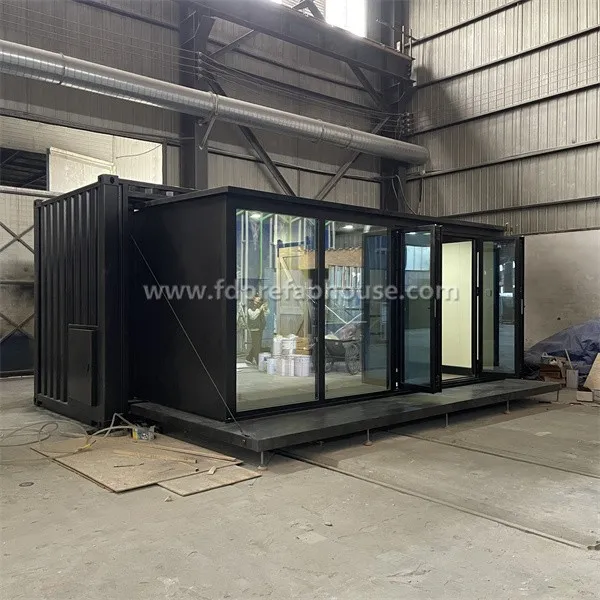

20-foot expandable container house with floor heating
Expandable house construction
20-foot expandable container house nearby
In the material selection for its 20-foot expandable container houses, Fangda Magic House completely abandons the common materials used in the industry, strictly adhering to the core principles of "high specifications, high compatibility, and high durability." Each material is paired with clear and rigorous parameter standards, ensuring the structural stability of the 20-foot expandable container home while also fully aligning with the characteristics of the British climate, EU building standards (EN standards), and CE certification requirements. This creates a significant differentiated advantage compared to competing products.
Wall Material
The wall material selection of the 20-foot expandable container home is one of Fangda Magic House's core advantages. Unlike the single color steel plates or simple insulation layers commonly used in other manufacturers' 20-foot expandable container homes, Fangda Magic House's 20-foot expandable container home adopts a three-layer composite wall structure of "steel beam + 50mm insulation layer + integrated wall panel," which fully complies with the EU building energy efficiency standard (EN 12524). The steel beams are made of Q355B high-strength steel, with a cross-section of 120mm × 60mm × 5mm and a tensile strength of over 355MPa, far exceeding the industry standard for ordinary Q235 steel.
Wall Material
This not only stably supports the weight of the 20-foot container home's expandable structure but also effectively resists erosion from the windy and rainy British climate, significantly enhancing the overall load-bearing capacity and service life of the container home. The 50mm insulation layer uses flame-retardant extruded polystyrene foam (XPS), with a thermal conductivity of only 0.028W/(m·K), a density of ≥32kg/m³, and a fire rating of B1, complying with the EU fire safety standard (EN 13501). Combined with the precise sealing process of the integrated wall panels, it can efficiently block heat transfer between the interior and exterior. When paired with a customized underfloor heating system, the indoor temperature of the 20-foot expandable container home can be maintained at 18-22℃ in winter, perfectly adapting to the cold British climate. In contrast, most competing 20-foot expandable container homes have insulation layers only 30-40mm thick, with a thermal conductivity higher than 0.035W/(m·K), resulting in significantly inferior insulation performance compared to Fangda Magic House's products.
Wall Material
The integrated wall panels are made of environmentally friendly bamboo-wood fiber material, with a thickness of 12mm. Their formaldehyde emission is ≤0.02mg/m³, meeting the EU E0 environmental protection standard (EN 717-1). They are odorless, pollution-free, and possess excellent waterproof, moisture-proof, and easy-to-clean properties, precisely addressing the common issues of dampness and mold in traditional 20-foot expandable container home walls and creating a comfortable and healthy living environment for users.
main structural materials
The doors, windows, and main structural materials
The doors, windows, and main structural materials of the 20-foot expandable container home also demonstrate Fangda Magic House's differentiated advantages, all of which comply with relevant EU standards and CE certification requirements. The doors and windows use thermal break aluminum profiles, unlike the ordinary aluminum alloy doors and windows commonly used in other 20-foot expandable container homes. The thermal break aluminum profiles have a wall thickness of 1.4mm, meeting the EU door and window profile standard (EN 14024). A 24mm-wide PA66 nylon thermal break strip is used in the middle, which effectively blocks heat transfer with a thermal conductivity of ≤2.8W/(m²·K). Combined with double-layer insulated Low-E glass (5+12A+5mm thickness), it offers a light transmittance of ≥85% and sound insulation of ≥35dB. This not only meets the stringent requirements for building energy efficiency in the UK but also effectively isolates outdoor noise and cold, balancing the lighting, sound insulation, and thermal insulation needs of the 20-foot expandable container home. The main frame of the 20-foot expandable container home adopts a standard container structure, made of weathering steel and treated with hot-dip galvanizing. The galvanized layer has a thickness of ≥80μm, reaching a C4 corrosion resistance grade and complying with the EU anti-corrosion standard (EN ISO 1461). This effectively resists erosion from the UK's maritime climate and harsh outdoor environments, giving the 20-foot expandable container home a service life of over 20 years. In contrast, most other 20-foot expandable container homes only use ordinary carbon steel frames without comprehensive hot-dip galvanizing treatment, resulting in a service life of only 10-15 years-a significant gap in durability.
Details
all materials adhering to EU standards and holding CE certification
The detailed material selection for the 20-foot expandable container home also highlights Fangda Magic House's meticulous craftsmanship, with all materials adhering to EU standards and holding CE certification, making them perfectly suited to the UK market.
The flooring uses 18mm-thick WPC (wood-plastic composite) flooring, with a density of 1.1-1.3g/cm³ and a moisture content of ≤3%, meeting EU environmental standards for flooring (EN 14041). It is waterproof, moisture-proof, insect-proof, and wear-resistant, with a surface hardness of Mohs 3 or higher, enabling it to withstand frequent foot traffic without scratching.
Unlike the ordinary wooden or cement floors commonly used in other 20-foot expandable container homes, this flooring enhances the living comfort of the container home and requires minimal maintenance, precisely adapting to the humid indoor and outdoor environments of the UK. The plumbing and electrical systems of the 20-foot expandable container home both comply with EU standards (the plumbing system conforms to EN 806, and the electrical system conforms to EN 60364) and are CE certified.
The plumbing system uses brass fittings, which are corrosion-resistant, leak-proof, and have a pressure resistance of ≥1.6MPa. The electrical system employs flame-retardant PVC conduits and 2.5mm² copper core wires with excellent conductivity; the insulation layer has a thickness of ≥1.0mm, achieving a V0 fire rating and fully complying with UK building plumbing and electrical codes. In contrast, some competitors' 20-foot expandable container homes only meet basic usage requirements for their plumbing and electrical systems, lacking EU certification and CE marking, making them unsuitable for deployment in the UK market.
How To open an expandable Container house
Our Design Advantages
Industrialized Prefabricated Production
The structural components and enclosure system of the expandable container house are all prefabricated and standardized in the factory. Precise cutting and assembly line operations result in a main material utilization rate of over 95%, far exceeding traditional construction. On-site work only requires connecting utilities and fixing components, eliminating the need for concrete pouring and other processes. Construction waste is reduced by more than 90% compared to traditional construction, adhering to green construction requirements.
Water-Saving Design, Adapting to Green Construction and Usage Needs
The production and installation processes do not require large amounts of water on-site. Compared to traditional construction processes such as concrete curing and on-site mixing, the water saving rate reaches 100%. When used in outdoor camps, rural areas, and other scenarios, it effectively reduces reliance on water resources, achieving efficient resource utilization.
How To Ship An Expandable Container House
请替换当前内容 Exquisite, perfectly balanced forms. Striking finishes that draw the eye and beckon the touch. Discover the exceptional performance and lasting beauty of a KOHLER bathroom faucet.
Our Certificate
Rock wool CE certificate
Plumbing Fixture Waste Fittings
Watermark plumbing fittings certification
How to Start Your Project With Us
Send the expandable Container house inquiry
Our main product have container bar,container house,container swimming pool,container toilet.
Send the design you like and you will get an estimated price
Confirm your request
Pay the Deposit
Get your special CAD&3D Design
Produce your unique Expandable Container House
Pay the final Payment
Load your expandable container house for shipment
two payment options
Pay a US$500 design fee. We will create the drawings for you, finalize the details, and lock in the price. If the project is ready for production, a 50% down payment is required, and the design fee can be deducted from the payment.
Pay the 50% down payment directly, including the design fee. Upon completion of the project (including installation of all appliances and lighting), we will confirm every detail with the client via video, remove fragile furniture, repack, and repair the goods, and collect the remaining 50% payment before shipment
FAQ
Q: What should I provide to build an expandable container house?
A: So easy! Sketch drawing would be a better reference for us. However, you will never mind if you don't have any. Simply notify us your requirements, such as the area, usage and the stories of the house. Before long, you'll possess an amazing design.
Q: Does your company is a factory or trade company?
A: We are factory, so you will enjoy the best price and competitive price.
Q: Can you offer designing service?
A: Yes, we have own design engineers. We could design full solution drawings as per your requirements.
Q: Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q: Do you have stock for all items?
A: In general, we produce based on the order which we confirmed.
