Single-Stall Portable Toilet – Waste Treatment Comparison
| Comparison Aspect | Water Flush Direct Discharge | Composting / Bio‑Digestion | Packaging / Bagging Type |
|---|---|---|---|

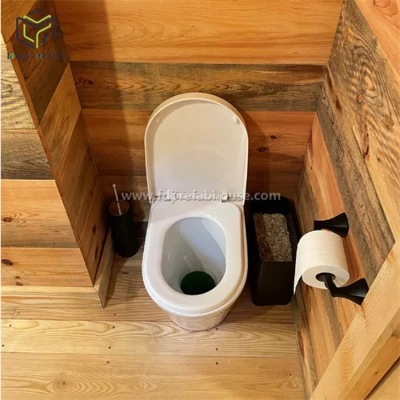

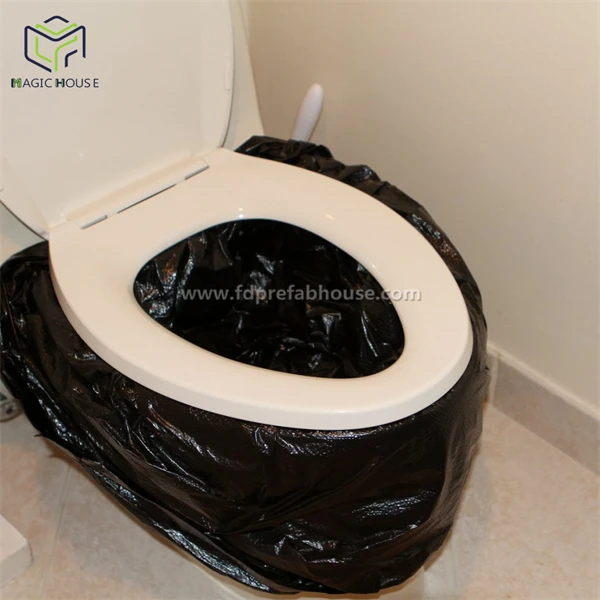

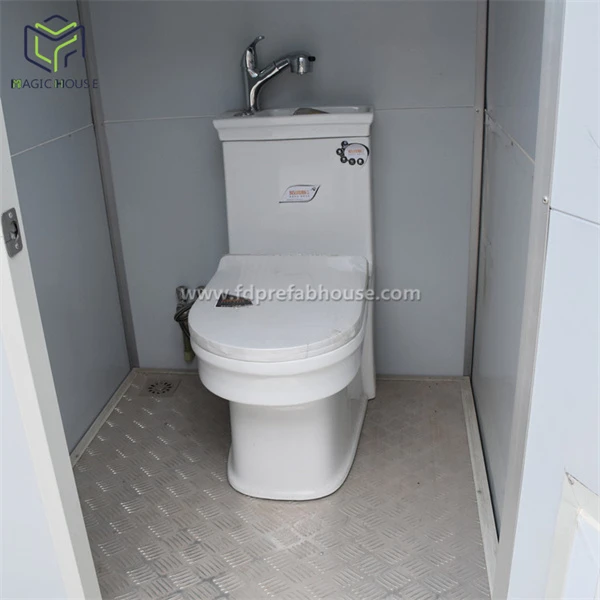

| Working Principle | Flushes waste directly into a sewer line or septic tank using water. | Uses aerobic microbial decomposition; mixes excreta with carbon materials (e.g., sawdust, coir) to produce humus. | Seals each use in a biodegradable bag, which is collected in a waste storage tank. |
| Water Required | Yes | No | No |
| Power Required | No (unless a pump is used) | Some models need a 12V fan for ventilation | Manual type – no power; electric type – requires power |
| Infrastructure | Needs external water supply + sewage pipe/septic tank | Self‑contained, no plumbing network needed | No water supply, no drainage, no septic tank |
| User Experience | Closest to a home toilet; clean with little odour. | Odour‑free (when operating properly). | No odour leakage; one bag per use prevents cross‑contamination. |
| Maintenance | Regular emptying of septic tank/waste tank; pipe freeze protection in winter. | Periodic addition of bacteria/carbon materials; removal of finished compost. | Regular replacement of bag rolls and emptying of waste storage tank. |
| Emptying Cycle | Depends on tank capacity; higher traffic means more frequent emptying. | Every few weeks to months, depending on usage. | Each roll usually lasts about 50 uses before needing replacement. |
| Consumable Cost | Water bills. | Bacteria/carbon materials (annual cost relatively low). | Biodegradable bags (ongoing consumable cost). |
| Equipment Cost | Lower | Higher | Medium |
| Temperature Impact | Pipes can freeze or block in low temperatures. | Decomposition slows down in cold weather and may be less efficient in extreme heat. | Unaffected by temperature. |
| Environmental Impact | Consumes water and requires sewage treatment. | Most eco‑friendly – zero discharge, produces organic fertiliser. | Bags are biodegradable; no wastewater discharge. |
| Best Applications | Public squares, service areas, scenic spots, and construction sites with existing water and sewer connections. | Remote mountain areas, campsites, off‑grid sites, projects with high environmental requirements. | Water‑scarce or power‑deficient areas, temporary events, emergency relief, construction sites, high‑altitude or extremely cold regions. |
|
Portable Toilet |
|
|
Item No. |
FD-CS-064 |
|
External Size |
1100*1100*2300mm |
|
Units/20FT |
30units |
|
Units/40HQ |
65units |
|
Wall Panel |
50mm EPS sandwich panel,thickness of steel metal is 0.326mm, density is 12KG/m³ |
|
Roof Panel |
50mm EPS sandwich panel,thickness of steel metal is 0.326mm, density is 12KG/m³ |
|
Door(1800*650mm) |
50mm EPS sandwich panel,thickness of steel metal is 0.326mm, density is 12KG/m³ |
|
Base |
The thickness of the angle steel is 2mm,The thickness of Painting steel plate is 3mm |
|
Sitting Toilet |
Ceramic |
|
Washing Basin with Faucet |
Ceramic |
|
Fan |
Exhaust Fan |
|
Light |
LED light |
|
Tap |
Stainless steel |
|
Shower |
Stainless steel |
|
Water Pipe Input |
PVC, 20mm |
|
Water Pipe Output |
PVC, 25mm |
|
Waste Pipe Output |
PVC, 110mm |
|
Locker |
Stainless steel |

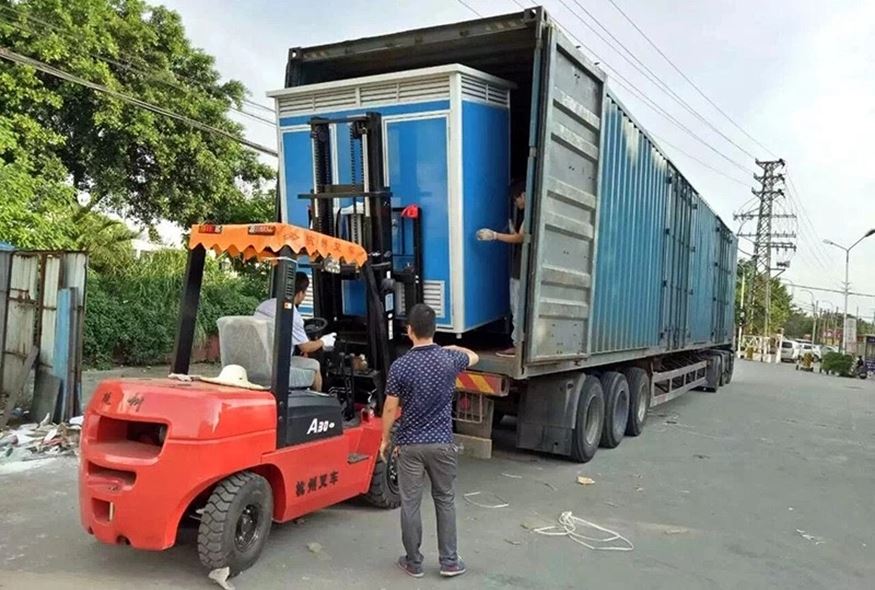

Shipping Method
Assembled or disassembled design could loading into 40HQ sea container
Detailed Overview
Design Options
FAQ
Q: Do you offer customization services?
A: Yes, we offer flexible and in-depth customization services. During the design stage, we confirm all customization requirements and conduct feasibility assessments. Customization options include: Layout and floor plan design Material selection (wall panels, flooring, insulation, etc.) Color and finish options Window and door configuration Electrical and plumbing layout We provide full CAD drawings and 3D renderings to help you visualize the final product and support your local permitting process.
Q: Do you offer off-grid solutions?
A: Yes. We can supply off-grid power & water systems including solar panel systems and water recycling / treatment systems for remote areas. These components are factory-packaged, pre-designed and pre-tested to ensure reliability. However, final on-site assembly and installation must be performed by you or your local team.
Q: Do you offer bulk discounts?
A: Yes. Bulk discount applies to orders over USD 200,000. Promotional discounts are available during Alibaba procurement festivals (Mar/Sep) and year-end.
Q: Does it need water and electricity connection?
A: Most facilities require water and 110V/240V (or 3-phase) power. For off-grid use, we offer solar panel systems and water recycling treatment for remote areas.
Q: How does the waste management system work?
A: Common practice: provide drain outlets under the container for on-site sewage connection. Alternatives: composting toilet, or install black/grey water tank with suction port for pump-out.
