Product Introduction

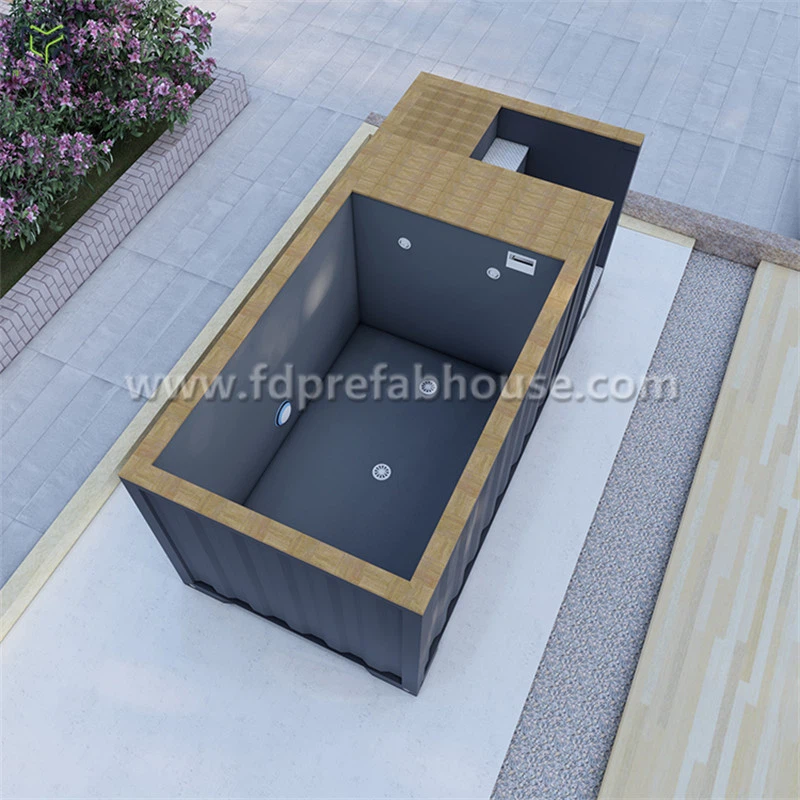

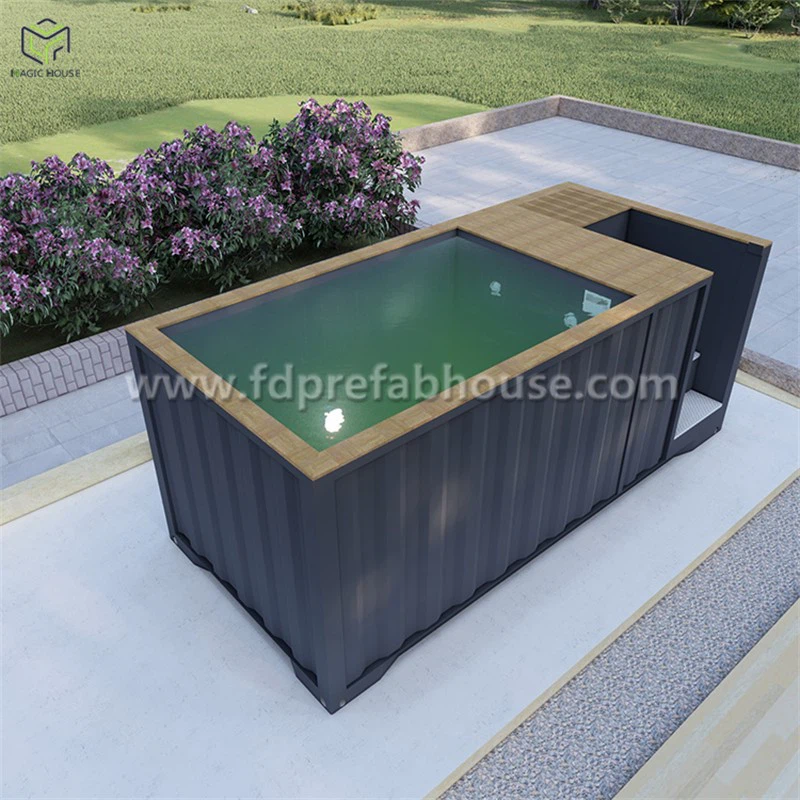

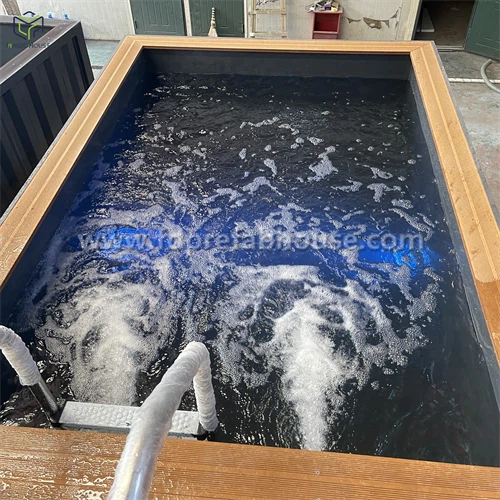

Magic House offer the fiberglass swimming pool come with a higher price tag than a container pool without fiberglass. The fiberglass pool could withstand even extreme climate and last a lifetime. The chemical could keep your pool clean and hygienic. The pool container could as a worthwhile investment and could continue to bring you enjoyment.
 |  |
 | |
 |  |
 |  |
SPECIFICATION | 20ft/40ft Container Pool | ||
Basic configuration (Mandatory) | Note | ||
Size | Length:5.8m; Width: 2.2m; Height: 1.8m; | Self-build Container | |

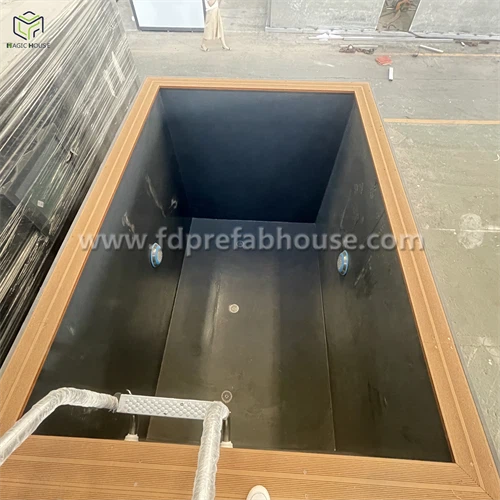

Liner | Steel sheet Liner Painting | ||
Structure | Galvanized steel structure welding (keel + column + square tube + steel shim+ exterior waves steel sheet,)+ painting, Sports Rubber Mat | ||

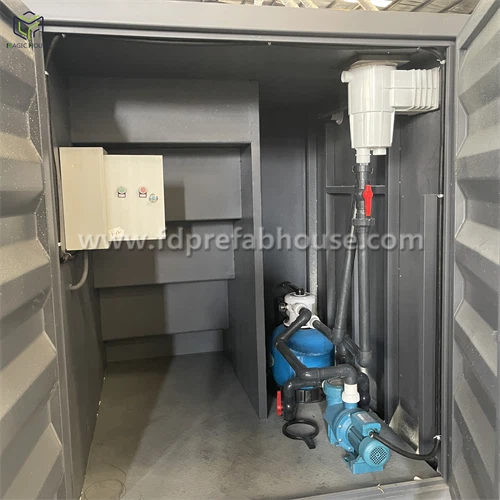

Circulating Water Treatment System | Ultra-silentCirculating Pump | 1.Power1.1KW/1.5 HP Ultra-silentCirculating Pump 2.Voltage:220v, 50hz(110v,60hz for NA) /Single phase 3.Flow: 21 m/H 4.Port Size(inch/mm): 1.5"/50mm | |
Polymer Filter | 1.Diameter:650mm Circulating Water Treatment System Polymer Filter 2. Flow: 17 m*/h 3. Port Size: DN 50mm 4. Filter Material: Quartz Sand 5.Grain diameter: 16-26mm(50KG/bag)-Fine flter | ||
Circuit ControlSystem | Electrical distribution box,leakage protection ,wire andother electrical control | ||
Water Inlet andOutlet | 100%Made by ABS,uv protection, high corrosion resistance.Including: Inlet 1 batch / outlet 1 batch /drainage 1 batch/skimmer 1 pc | ||
Pipeline system | PvC pipe, PPR pipe | ||
Optional Pack | |||
Exterior Upgrade Pack | Pool Ladder | 1.Stainless steel anti-slip step pool ladder, 2 Material: ss304; Pool Ladder 3. Step:5 4.Thickness:1.2mm | |
Cleaning Pack | Glass Window | 40mm thickness arcylic window | |

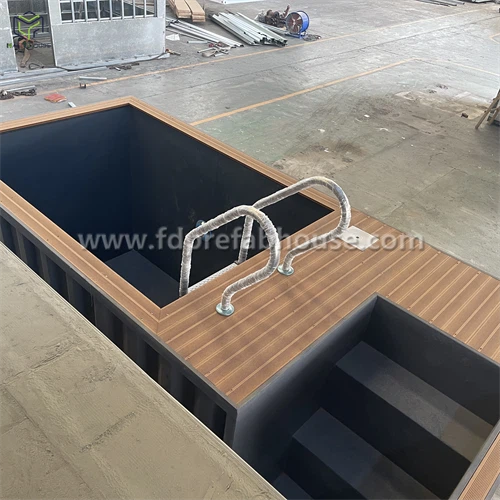

Stairs | Build-in Staircase,WPC Flooring | ||
External Staircase Galvanized steel tube+WPC Flooring | |||
Guardrail | Galvanized steel tube | ||
Patio & Deck | WPC Flooring / Bamboo Flooring | ||
Paint Job | Sand the bottom paint and apply new required paint. | ||
Pool Cover and Reel | 1.Input Voltage :24V Input; 2.Power:300W/50Hz; 3.Torgue :250N.M. 4. IP Grade :lP68; 5.Voltage Supply :220V with transformer 6.Material Stand: Stainless Steel Pool; 7.Slat Material :polycarbonate | ||
Dosing PumpsChlorine Feeder | Weight 295kg , Max pressure 4 bar | ||
Salt Chlorinator | Emaux salt chlorinator Standard version Cell output:15g/h | ||
Ultraviolet Disinfection System | 1.Power supply:AC220V/60HZ 2.Germicidal ultraviolet lamps: 3pcs,80w/pC 3.Total Power: 240W 4.Rated Flowrate:20m3/hr. 5.Max.Compression Resistance: 8Kgs/cm2 6. Inlet and Outlet water pipe connector: DN65/2.5 7.Equipment Dimension: Reactor:#304 stainless steel,size:920mm(length)X Cleaning Pack 159mm(width)X380mm(height) | ||
Manuel CleaningTools | 1.2HP water pump,220v,50hz, 2. Flow rate:25m3/hr 3.14inch vacuum head 4. 5m Telescopic pole Manuel CleaningTools 5.1.5inch check valve Stainless steel handcart 6.15m vacuum hose 10m electric cable 7.2m soft drain pipe 8.Vacuum suction pipe fitting | ||
Robot Poo Cleaner | Auto cleaing robot Model:HJ-2042 input:220v Power:450w Wire length:18m | ||
Heat System | Water Heater | 1.Size:L550*W330*H470mm 2.Power 380v voltage,24KW | |
Pool Heat Pump | 5HPB,L1100*W440*H700mm,3KW | ||
Accessories
| Wall Mounted PoolLight | 1.Power12*1W 2. Voltage:AC12V 3. Color:RGB+Small controller | |
Swim Jet | SS304,.2.2KW pump,220v50hz(110v,60hz for NA) | ||
Jacuzzi | 1.Product Dimension:1770*1570*750mm; 2. For 4 people. 4 seats, 3.1x2KW heater 4.0zone. 5.1*2HP double speed pump; 6. Total 32 water jet; 7.Capacity: 900L; | ||
 |  |
Design Skills

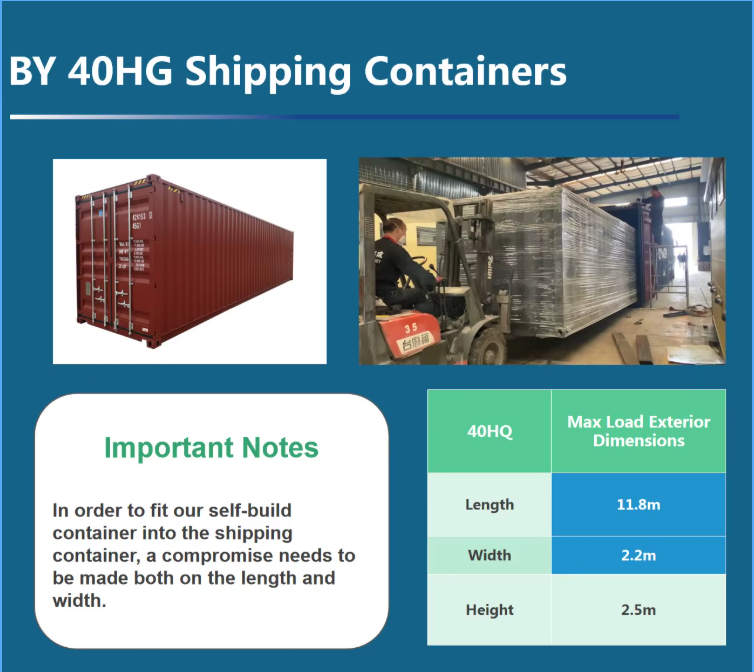

One of our strengths is to customize products for customers. We will put forward reasonable suggestions according to your customized needs, mainly in order to consider avoiding or reducing freight damage during the transportation process. | Software

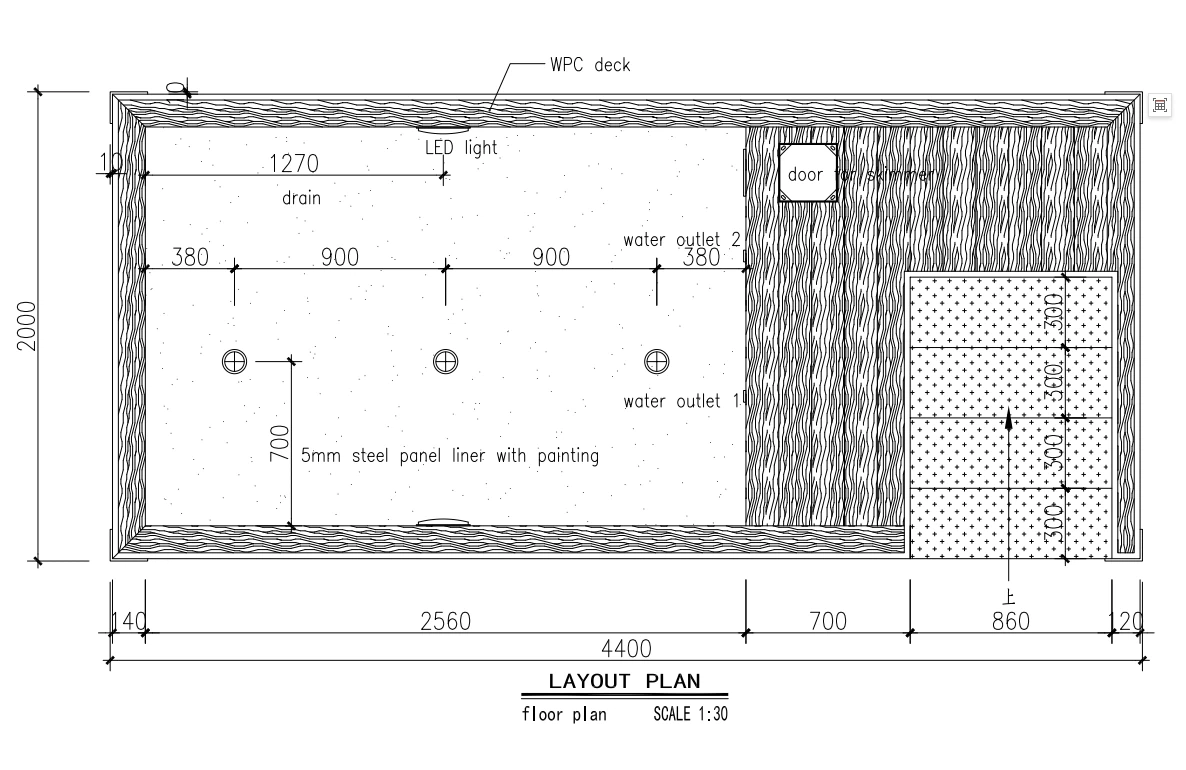

We have our own design department. We usually use the following software to produce design drawings and effects renderings for our clients: 1. Auto CAD ---- Drawings 2. 3D Max --------3D Renderings 3. Sketch Up Pro -------- 3D Models |

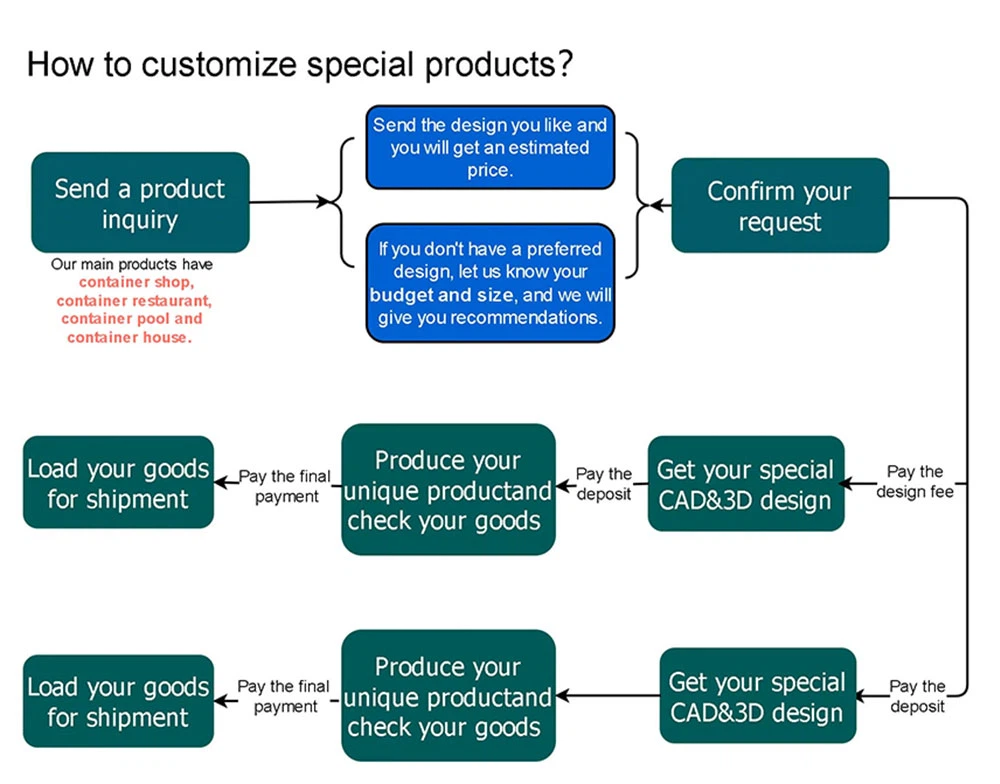

Send a product inquiry (Our main products havecontainer shop,container restaurant,container pool andcontainer house.)
Send the design you like and you will get an estimated price
If you don't have a preferred design, let us know your budget and size, and we will give you recommendations
Confirm your request
Pay the design fee and you will Get your special CAD&3D design. If you Pay the deposit,we will Produce your unique product and check your goods. So you should Pay the final payment,and we will load your goods for shipment
If you pay the deposit ,you will get your special CAD&3D design.We will Produce your unique product and check your goods. So you should Pay the final payment,and we will load your goods for shipment
We have two payment methods to start the project:
1. Pay a US$500 design fee. We will create the drawings for you, finalize the details, and lock in the price. If the project is ready for production, a 50% down payment is required, and the design fee can be deducted from the payment.
2. Pay the 50% down payment directly, including the design fee. Upon completion of the project (including installation of all appliances and lighting), we will confirm every detail with the client via video, remove fragile furniture, repack, and repair the goods, and collect the remaining 50% payment before shipment.
Q: Are you a factory or a trading company?
We are a factory. Our factory address is No. 87, Jinchuan Road, Jintang County, Chengdu, Sichuan, China.
Q: What is your supply capacity? A: Annual production: 72,000 container houses, 564,000 square meters of prefabricated houses; 24,000 portable toilets; 360,000 square meters of steel structures.
Q: What should we do if we don't have professional workers to install?
A: Our container designs are so perfect that you can easily DIY them according to our drawings. We will provide detailed assembly, construction, and installation videos. If necessary, we can send our engineers to provide guidance services at your site.
Q: How long is your delivery time?
A: Generally within 2-30 days, depending on the order.
Q: How do you guarantee the quality of your products?
A: Strict product quality control, quality creates the future. This is our factory's tenet. Every product in our factory undergoes a strict testing procedure and must be 100% quality-certified before delivery.
Q: How can I get a quote for my project?
A: If you have a drawing, we can provide you with a quote based on your drawing. If you don't have a design, our engineers will create some drawings for your confirmation and then provide you with a quote.
