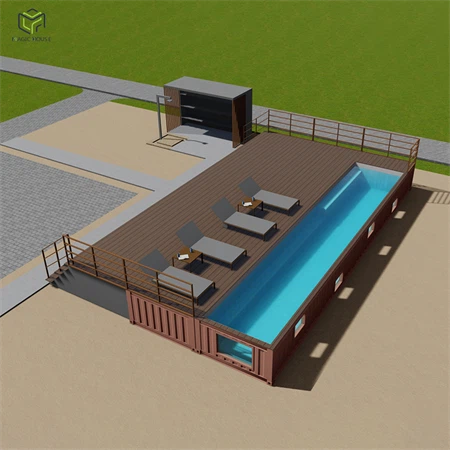

Combination container swimming pool

SPECIFICATION

20ft/40ft

Container Pool

Basic configuration (Mandatory)

Note

Size

Length:11.8m; Width: 4.8m; Height: 1.8m;

Self-build Container

Liner

Steel sheet Liner Painting

Structure

Galvanized steel structure welding (keel + column + square tube + steel shim+ exterior waves steel sheet,)+ painting, Sports Rubber Mat

Circulating Water Treatment System

Ultra-silentCirculating Pump

1.Power1.1KW/1.5 HP

Ultra-silentCirculating Pump

2.Voltage:220v, 50hz(110v,60hz for NA) /Single phase

3.Flow: 21 m/H

4.Port Size(inch/mm):

1.5"/50mm

Polymer Filter

1.Diameter:650mm

Circulating Water

Treatment System

Polymer Filter

2. Flow: 17 m*/h

3. Port Size: DN 50mm

4. Filter Material: Quartz Sand

5.Grain diameter: 16-26mm(50KG/bag)-Fine flter

Circuit ControlSystem

Electrical distribution box,leakage protection ,wire andother electrical control

Water Inlet andOutlet

100%Made by ABS,uv protection, high corrosion

resistance.Including: Inlet 1 batch / outlet 1 batch /drainage 1 batch/skimmer 1 pc

Pipeline system

PvC pipe, PPR pipe

Optional Pack

Exterior Upgrade

Pack

Pool Ladder

1.Stainless steel anti-slip step pool ladder,

2 Material: ss304;

Pool Ladder

3. Step:5

4.Thickness:1.2mm

Cleaning Pack

Glass Window

40mm thickness arcylic window

Stairs

Build-in Staircase,WPC Flooring

External Staircase Galvanized steel tube+WPC Flooring

Guardrail

Galvanized steel tube

Patio & Deck

WPC Flooring / Bamboo Flooring

Paint Job

Sand the bottom paint and apply new required paint.

Pool Cover and Reel

1.Input Voltage :24V Input;

2.Power:300W/50Hz;

3.Torgue :250N.M.

4. IP Grade :lP68;

5.Voltage Supply :220V with transformer

6.Material Stand: Stainless Steel Pool;

7.Slat Material :polycarbonate

Dosing PumpsChlorine Feeder

Weight 295kg , Max pressure 4 bar

Salt Chlorinator

Emaux salt chlorinator Standard version Cell

output:15g/h

Ultraviolet Disinfection System

1.Power supply:AC220V/60HZ

2.Germicidal ultraviolet lamps: 3pcs,80w/pC

3.Total Power: 240W

4.Rated Flowrate:20m3/hr.

5.Max.Compression Resistance: 8Kgs/cm2

6. Inlet and Outlet water pipe connector: DN65/2.5

7.Equipment Dimension:

Reactor:#304 stainless steel,size:920mm(length)X

Cleaning Pack

159mm(width)X380mm(height)

Manuel CleaningTools

1.2HP water pump,220v,50hz,

2. Flow rate:25m3/hr

3.14inch vacuum head

4. 5m Telescopic pole

Manuel CleaningTools

5.1.5inch check valve Stainless steel handcart

6.15m vacuum hose 10m electric cable

7.2m soft drain pipe

8.Vacuum suction pipe fitting

Robot Poo Cleaner

Auto cleaing robot Model:HJ-2042 input:220v

Power:450w Wire length:18m

Heat System

Water Heater

1.Size:L550*W330*H470mm

2.Power 380v voltage,24KW

Pool Heat Pump

5HPB,L1100*W440*H700mm,3KW

Accessories

Wall Mounted PoolLight

1.Power12*1W

2. Voltage:AC12V

3. Color:RGB+Small controller

Swim Jet

SS304,.2.2KW pump,220v50hz(110v,60hz for NA)

Jacuzzi

1.Product Dimension:1770*1570*750mm;

2. For 4 people. 4 seats,

3.1x2KW heater

4.0zone.

5.1*2HP double speed pump;

6. Total 32 water jet;

7.Capacity: 900L;
